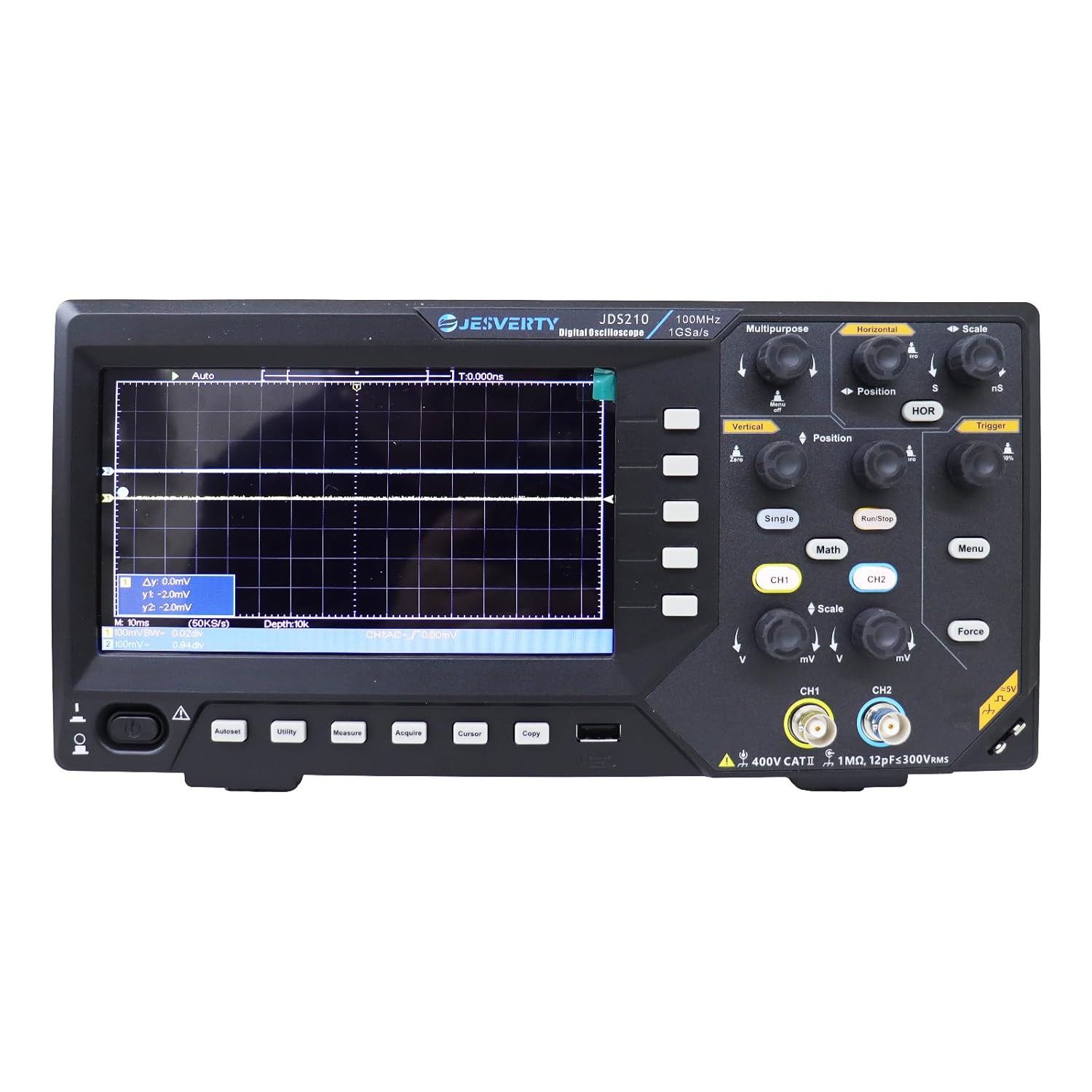

Jesvetry 100mhz Bandwidth JDS210 Digital Oscilloscope with 2 Channels and Screen 7 inch / 18 cm, TFT-LCD Display, Portable Professional Oscilloscope Kit with 500 MS/s *2 Sampling Rate

【High-Performance Dual-Channel Operation】The Jesverty JDS210 oscilloscope delivers professional-grade measurements with 100MHz bandwidth and 500 MS/s real-time sampling rate across 2 channels. Capture precise waveforms with a 2 ns/Div to 1000s/Div time base range and 20 mV/Div~5 V/Div vertical scaling. Store up to 16 waveform sets and 10K+ sampling points per acquisition, enhanced by USB drive storage for seamless data transfer.
【 7-Inch True Color Clarity】Analyze details effortlessly on a 7-inch TFT LCD (800×480 resolution) displaying 65,535 vivid colors. Utilize 4 cursor modes (ΔV, ΔT, ΔV+ΔT, auto-tracking) for accurate voltage/time measurements. The intuitive interface supports single/multi-waveform tracking for complex signal comparisons.
【Smart Probes & Auto-Ranging】Simplify setup with auto-ranging for horizontal/vertical adjustments. Compatible with 1X/10X/100X/1000X probes, ensuring versatility for low/high-voltage applications. Ideal for electronics, automotive diagnostics, and industrial testing.
【Precision Measurement Tools】Embedded 6-digit hardware frequency counter measures 2Hz–20MHz signals, while current measurement handles 100mA/V–1kA/V ranges. Store data via USB or connect to PCs for advanced analysis.
【Lab-Ready Advanced Features】Execute 30+ automated measurements (rise time, RMS, etc.) and customize menus for workflow efficiency. Supports LABVIEW communication, SCPI compliance, and secondary development for R&D teams. Powered by DC for portable or benchtop use.
